system validation in the age of CD

building

Social networks

E-Commerce

Collaboration tools

Games

Spaceships

Pacemakers

problem

lose money

lose information

lost trust


OMG OMG OMG

Why do systems fail?

solution

Do not write bugs!

Do not write bugs!

solution

Do not write bugs!

unit testing

integration testing

formal validation

however

knock knock   race condition!   who's there?

OS update
self-replicating bug
SSL expiration

“Windows Azure Storage experienced a worldwide outage impacting HTTPS traffic due to an expired SSL certificate,” Martin reported. “HTTP traffic was unaffected but the event impacted a number of Windows Azure services that are dependent on Storage.”

Hush

if (u.pwd == pwd) {
	return "Collect 200!"
}

return "Go to jail"
if (u.hpwd == hash(pwd)) {
	return "Collect 200!"
}

return "Go to jail"

if (u.hpwd == hash(pwd + u.salt)) {
	return "Collect 200!"
}

return "Go to jail"

are you an existing user?

STOP!

if (u.hpwd == hash(pwd + u.salt)) {
	return "Collect 200!"
}

if (u.salt == new byte[16] && u.hpwd == hash(pwd)) {
	u.salt = genRandomBytes(16)
	u.hpwd = hash(pwd + u.salt)
	u.save()
	return "Collect 200!"
}

return "Go to jail"
UPDATE TABLE users
ADD COLUMN salt
NOT NULL
DEFAULT '\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\'


and in QA and Staging!

are you an existing user?

STOP!

what now?

Timeline

10:12 Migration script ran on prod DB
10:20 code deployed to prod
16:05 First impacted customer
18:05 First impacted customer sends email
18:10 Problem escalated to engineering team
18:15 Decision made not to roll back
19:20 Engineer repro on prod, problem identified
19:30 Fixed migration script is code-reviewed
19:35 Fixed migration script ran on prod DB

how are we doing on time?

10:20 code deployed to prod
16:05 First impacted customer
18:05 First impacted customer sends email
19:30 Fixed migration script is code-reviews
19:35 Fixed migration script ran on prod DB

Time to Failure: 5h45m
Time to Detection: 2h
Time to Mitigation: 1h25m
Time to Recovery: 5m

root cause

prod default salts are byte[15] instead of byte[16]

DEFAULT '\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\'

15 '\0' and 1 '\'

MySQL decide not to fail, and guessed differently on Windows and Linux

learnings from NullBug

Time to detection

always allow rollback

prod is always different

What did you say?

Large distributed system, stateful, load balanced

SeeAlso: A Gossip-Style Failure Detection Service

6 years in production, millions TPS

yup, per second

Suddenly error rate goes up

Soon after, instances in the cluster randomly segfault and restart

Error rate goes further up

OMG OMG OMG

thou shalt gossip

	host01.mycompany.com 10
	host06.mycompany.com 90
	host07.mycompany.com 30
	host10.mycompany.com 31
	host02.mycompany.com 35
	?ost01.mycompany.com 10
	host06.mycompany.com 90
	host07.mycompany.com 30
	host10.mycompany.com 31
	host02.mycompany.com 35

When an instance is selected, a quick format validation is executed.

When invalid, deletion code is calling free twice on the same pointer (C++ FTW). Segfault follows.

show me the check(sum)

checksum=0123456789abcdef

if headers.containsKey("checksum") ...
else whatever
?hecksum=0123456789abcdef

Zero downtime interim code was never removed

Why?

  • Why did error rate go up?
  • Why did hosts restart?
  • Why was memory released?
  • Why was there a broken hostname?
  • Why wasn't the broken message rejected?
  • Why did the server accept a missing checksum?
  • Why wasn't the impact limited to a single host?

impact

Single NIC failure on a single host - caused worldwide impact on multiple subsystems

how are we doing on time?

Time to Failure: 6 years
Time to Detection: 1m
Time to Mitigation: 1h
Time to Recovery: 4h

learnings from BitBug

Time to detection

Self replicating bugs

Never tested scenarios

now what?

metrics

figure out the most important business metrics

figure out thresholds

Alarm on the thresholds

Auto-rollback on alarms

Look at trends, DoD, WoW, YoY

early

Consistency Check - replay traffic comparing results of Beta and Prod

Delta comparison - replay traffic comparing key metrics (latencies, CPU utilization, GC profile etc) on Beta vs Prod

Blast radius reduction

Regionalize (subsystems, locations, markets)

Deployment Windows - identify low-traffic o'clock

Canary deployments - deploy to one (or few) instances, compare metrics for a while

Controlled rollout - deploy to X% at the time, auto-rollback on alarms
easier during low-traffic windows

off the beaten track

We don't have many tests. I'm not advocating that you shouldn't put in tests. [The reason we can get away with this] is that we have a great community. So instead of having automated test we have automated human tests.

But I'm not stack overflow ...

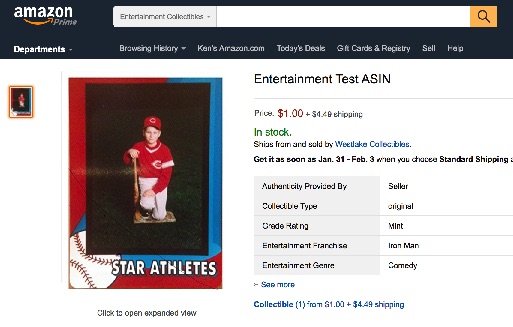

Synthetic transactions - emulate users, products and interactions. Define success and failure metrics

Let's play

In the early 2000s, Amazon created GameDay, a program designed to increase resilience by purposely injecting major failures into critical systems semi-regularly to discover flaws and subtle dependencies. Basically, a GameDay exercise tests a company's systems, software, and people in the course of preparing for a response to a disastrous event.

DiRT was developed to find vulnerabilities in critical systems and business processes by intentionally causing failures in them, and to fix them before such failures happen in an uncontrolled manner. DiRT tests both Google's technical robustness, by breaking live systems, and our operational resilience by explicitly preventing critical personnel, area experts, and leaders from participating.

Notomatic

Change management process - a "code" reviewed document

Pre-mortem

I play a little game. I assume the worst
Baelish, P.

Clear rollback criteria

Pre-reviewed scripts

Any monkey can execute or take over

Analysis

Correction Of Errors

Emphasis on learning, not on finger-pointing

five whys?

"how would you cut impact in half?"

"how would you cut detection in half?"

best learnings - read COEs

@kenegozi
http://kenegozi.com
http://kenegozi.com/talks

recap

  • automate what you can, vet what you cannot
  • reduce time to detection
  • rollbackability is a feature
  • reduce blast radius
  • always be shipping!

}
